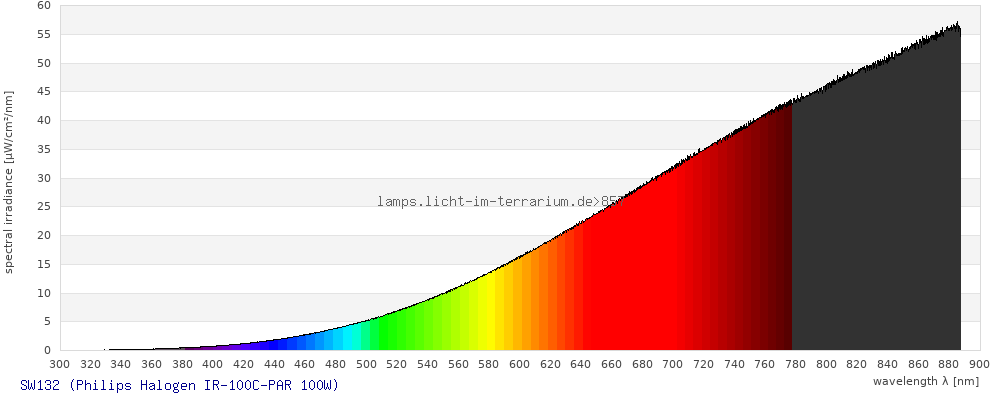

Spectrum #857 SW132 (Philips Halogen IR-100C-PAR 100W) Edit
Delete(1) Raw Measurement
| Lampid | SW132 |
|---|---|
| Spectrometer | USB2000+ |
| Originator | Sarina Wunderlich |
| Ballast | - no ballast or default/unknown ballast - |
| Reflector | - no reflector - |
| Distance | 20 |
| Age | 100 |
created by Sarina Wunderlich, 22.09.2026; last updated by , 22.09.2026
Description
dimmed to 70,8W

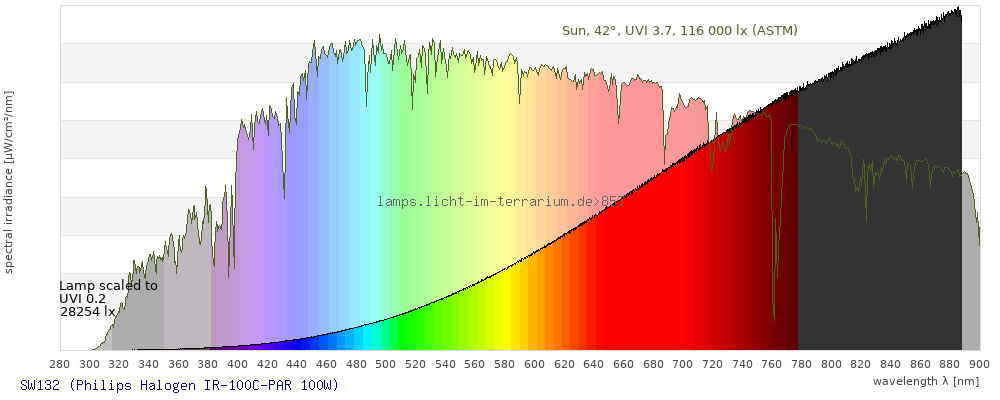

(2) Comparison of full spectrum to sunlight
The spectrum is compared to the ASTM spectrum. The measured spectrum is scaled to a lux or UVI value that seems to "make sense" to the database. This can go wrong, depending on the quality and range of the data.
(3) Colorimetry
Colorimetry is the science to describe physically the human color perception. The wavelength range 380 nm - 780 nm is visible to humans and detected by three different photoreceptors. Many Reptiles see the range 350 nm - 800 nm and have an additional UV photoreceptor in their retina.
Whereas a spectrometer measures the intensity in every tiny wavelength interval resulting in thousands of individual intensities, the human eye only measures three intensities detected by the three cones. The same is true for the reptile eye with usually three or four photoreceptors. Effectively the detailled spectrum displayed above reduces to a much compacter bar graph displayed below. The photoreceptor sensitivites from these L-Cone, M-Cone, S-Cone, and U-Cone are used, they are chosen as an average of measured reptile photoreceptor sensitivity curves. The bar graph also shows as reference the intensity seen by the three or four photoreceptors for average sunlight (ASTM spectrum).
From these three numbers the colour coordinate and the correlated colour temperature for humans are calculated using the CIE standard method. I adapted this concept to a "3 cone reptile (M,S,U)" and a "4 cone reptile (L,M,S,U)". I am sure, that this adaption to other colour spaces makes sense mathematically and this is also done in scientific research regarding colour vision of animals, however I have not seen calculation of colour temperatures for other animals in the scientific literature. Even if it is hypothetical, at least this shows, how arbitrary the colour temperature is, and that the colour temperature calculated for humans does not apply to reptiles. The colour spaces also show the colour coordinates of different phases of daylight ((ids 1, 338 – 451, 511 – 513 ), indicated by crosses, coloured in the appriximate colour perceived by a human.
| Human (CIE) | 3 cone reptile | 4 cone reptile | |
|---|---|---|---|
| Cone Excitation | |||
| Colour Coordinate | ( 0.49 ; 0.42 ) | ( 0.68 ; 0.25 ) | ( 0.64 ; 0.25 ; 0.089 ) |
| CCT | 2300 Kelvin | 2300 Kelvin | 2300 Kelvin |
| distance | 0.0015 | 0.0006 | |
| colour space | 3-D-graph not implemented yet |

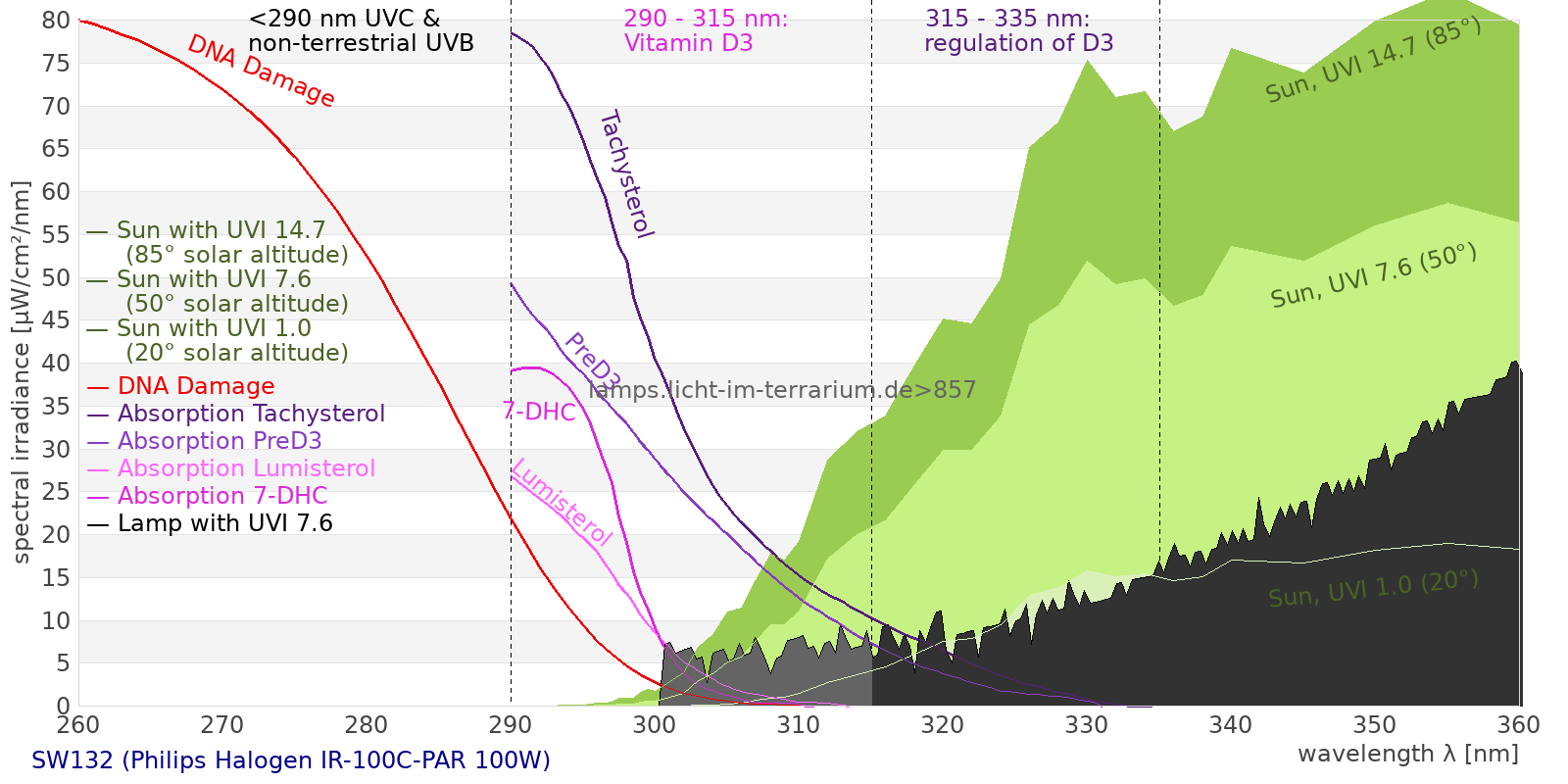

(4) Vitamin D3 Analysis
Vitamin D3 is produced by UVB radiation around 300 nm. 7DHC/ProD3 present in the skin is converted to PreD3 when absorbing an UV photon. PreD3 can be converted back to ProD3, to Lumisterol, or to Tachysterol when absorbing another UV photon or can be converted to Vitamin D3 in a warm environment.
This process prevents any overdose of vitamin D3 from UV radiation with a spectrum similar to sunlight. As a comparison the solar spectra at 20°(id:14) and at 85°(id:21) solar angle are shown.
The ratio of the readings of two solarmeters 6.2 (UVB) and 6.5 (UV index) has proven a useful and very simply number to acess the spectral shape in the vitamin-d3-active region.
(5) Effective Irradiances
Effective irradiances are calculated for all ranges, actionspectra and radiometers currently present in this database.
The calculation method is a numerical implementation (Simpson's rule) of the formula
To learn more about calculating effective irradiances and radiometers I recommend this excellent report on UVB meters: Characterizing the Performance of Integral Measuring UV-Meters (pdf).
The numbers in the following tables can also be used to estimate certain (effective) irradiances from radiomer readings. Example: If the database lists
- range: UVB (US) = 13.8 µW/cm²
- radiometer: Solarmeter 6.2 = 19.6 µW/cm²
(5a) Ranges
total ( 0 nm - 0 nm) 12100 µW/cm² = 121 W/m² UVC ( 0 nm - 280 nm) 0 µW/cm² = 0 W/m² non-terrestrial ( 0 nm - 290 nm) 0 µW/cm² = 0 W/m² total2 ( 250 nm - 880 nm) 11700 µW/cm² = 117 W/m² UVB (EU) ( 280 nm - 315 nm) 0.615 µW/cm² = 0.00615 W/m² UVB (US) ( 280 nm - 320 nm) 0.875 µW/cm² = 0.00875 W/m² UVA+B ( 280 nm - 380 nm) 13.1 µW/cm² = 0.131 W/m² Solar UVB ( 290 nm - 315 nm) 0.615 µW/cm² = 0.00615 W/m² UVA D3 regulating ( 315 nm - 335 nm) 1.34 µW/cm² = 0.0134 W/m² UVA (EU) ( 315 nm - 380 nm) 12.4 µW/cm² = 0.124 W/m² UVA2 (medical definition) ( 320 nm - 340 nm) 1.62 µW/cm² = 0.0162 W/m² UVA (US) ( 320 nm - 380 nm) 12.2 µW/cm² = 0.122 W/m² UVA1 (variant) ( 335 nm - 380 nm) 11.1 µW/cm² = 0.111 W/m² UVA1 (medical) ( 340 nm - 400 nm) 22.4 µW/cm² = 0.224 W/m² vis. UVA ( 350 nm - 380 nm) 9.04 µW/cm² = 0.0904 W/m² VIS Rep3 ( 350 nm - 600 nm) 1300 µW/cm² = 13 W/m² VIS Rep4 ( 350 nm - 700 nm) 3700 µW/cm² = 37 W/m² purple ( 380 nm - 420 nm) 31.4 µW/cm² = 0.314 W/m² VIS ( 380 nm - 780 nm) 6730 µW/cm² = 67.3 W/m² VIS2 ( 400 nm - 680 nm) 3070 µW/cm² = 30.7 W/m² PAR ( 400 nm - 700 nm) 3680 µW/cm² = 36.8 W/m² tmp ( 400 nm - 1100 nm) 12100 µW/cm² = 121 W/m² blue ( 420 nm - 490 nm) 184 µW/cm² = 1.84 W/m² green ( 490 nm - 575 nm) 707 µW/cm² = 7.07 W/m² yellow ( 575 nm - 585 nm) 139 µW/cm² = 1.39 W/m² orange ( 585 nm - 650 nm) 1230 µW/cm² = 12.3 W/m² red ( 650 nm - 780 nm) 4430 µW/cm² = 44.3 W/m² IR2 ( 655 nm - 685 nm) 817 µW/cm² = 8.17 W/m² IRA ( 700 nm - 1400 nm) 8410 µW/cm² = 84.1 W/m² IRB ( 1400 nm - 3000 nm) 0 µW/cm² = 0 W/m²
(5b) Actionspectra
Erythema 0.0491 UV-Index Pyrimidine dimerization of DNA 0.449 µW/cm² Photoceratitis 0.0712 µW/cm² Photoconjunctivitis 0.00117 µW/cm² DNA Damage 0.00387 Vitamin D3 0.229 µW/cm² Photosynthesis 2700 µW/cm² Luminosity 8990 lx Human L-Cone 1450 µW/cm² Human M-Cone 917 µW/cm² Human S-Cone 142 µW/cm² CIE X 1480 µW/cm² CIE Y 1250 µW/cm² CIE Z 281 µW/cm² PAR PPFD 190 µmol/m²/s Extinction preD3 1.12 e-3*m²/mol Extinction Tachysterol 3.8 e-3*m²/mol Exctincition PreD3 541 m²/mol Extinction Lumisterol 0.198 m²/mol Exctincition Tachysterol 5650 m²/mol Extinction 7DHC 0.121 m²/mol L-Cone 1410 µW/cm² M-Cone 552 µW/cm² S-Cone 198 µW/cm² U-Cone 58.5 µW/cm² UVR - ICNIRP 2004 0.0401 Rel Biol Eff Melatonin Supression 275 µW/cm² Blue Light Hazard 163 µW/cm² (18.1 µW/cm² per 1000 lx) CIE 174:2006 PreVit D3 0.261 µW/cm² Lumen Reptil 6220 "pseudo-lx" Vitamin D3 Degradation 0.186 µW/cm² Actinic UV 0.0388 µW/cm² (0.0432 mW/klm) Exctincition Lumisterol 275 m²/mol Exctincition 7DHC 163 m²/mol Exctincition Toxisterols 94.3 m²/mol UV-Index2 0.0491 UV-Index (285-400nm)
(5c) Broadbandmeters
Solarmeter 6.2 (UVB, pre 2010) 1.12 µW/cm² Solarmeter 6.5 (UV-Index, pre 2010) 0.0654 Leybold UVB 0.794 µW/cm² Leybold UVA 9.71 µW/cm² Leybold UVC 0 µW/cm² DeltaOhm UVB 1.87 µW/cm² DeltaOhm UVC 0.211 µW/cm² Vernier UVB 0.333 µW/cm² Vernier UVA 5.63 µW/cm² Gröbel UVA 10 µW/cm² Gröbel UVB 0.469 µW/cm² Gröbel UVC 0.000218 µW/cm² Luxmeter 8320 lx Solarmeter 6.4 (D3) 0.204 IU/min UVX-31 2.42 µW/cm² IL UVB 0.000521 µW/cm² IL UVA 11.6 µW/cm² Solarmeter 6.5 (UVI, post 2010) 0.0526 UV-Index Solarmeter 6.2 (UVB, post 2010) 0.673 µW/cm² (Solarmeter Ratio = 12.8) Solarmeter AlGaN 6.5 UVI sensor 0.563 UV Index GenUV 7.1 UV-Index 0.0325 UV-Index Solarmeter 10.0 (Global Power) (manuf.) 186 W/m² Solarmeter 4.0 (UVA) 0.236 mW/cm² LS122 (manuf.) 11.3 W/m² ISM400 (first guess) 217 W/m² LS122 (assumption) 14.8 W/m² ISM400_new 232 W/m² Solarmeter 10.0 (Global Power) (assumption) 192 W/m²
(5d) Summary of my favourites
| UVC (0nm -280nm) [µW/cm] | 0 | 0 % |
| non-terrestrial (0nm -290nm) [µW/cm] | 0 | 0 % |
| UVB (EU) (280nm -315nm) [µW/cm] | 0.615 | 0.00526 % |
| UVB (US) (280nm -320nm) [µW/cm] | 0.875 | 0.00747 % |
| Solar UVB (290nm -315nm) [µW/cm] | 0.615 | 0.00526 % |
| UVA (EU) (315nm -380nm) [µW/cm] | 12.4 | 0.106 % |
| UVA (US) (320nm -380nm) [µW/cm] | 12.2 | 0.104 % |
| UVA2 (medical definition) (320nm -340nm) [µW/cm] | 1.62 | 0.0138 % |
| UVA1 (medical) (340nm -400nm) [µW/cm] | 22.4 | 0.192 % |
| UVA D3 regulating (315nm -335nm) [µW/cm] | 1.34 | 0.0114 % |
| vis. UVA (350nm -380nm) [µW/cm] | 9.04 | 0.0772 % |
| VIS (380nm -780nm) [µW/cm] | 6730 | 57.4 % |
| blue (420nm -490nm) [µW/cm] | 184 | 1.58 % |
| total2 (250nm -880nm) [µW/cm] | 11700 | 100 % |
| UV-Index2 [UV-Index] | 0.0491 | |
| Luminosity [lx] | 8990 | |
| Blue Light Hazard [µW/cm²] | 163 | 18.1µW/cm/1000lx |
| Solarmeter 6.5 (UVI, post 2010) [UV-Index] | 0.0526 | |
| Solarmeter 6.2 (UVB, post 2010) [µW/cm²] | 0.673 | |
| Actinic UV [µW/cm²] | 0.0388 | 6.01 at UVI7.6 |
| Vitamin D3 [µW/cm²] | 0.229 | 35.5 at UVI7.6 |
